| Technical Specification 产品参数 | |||||

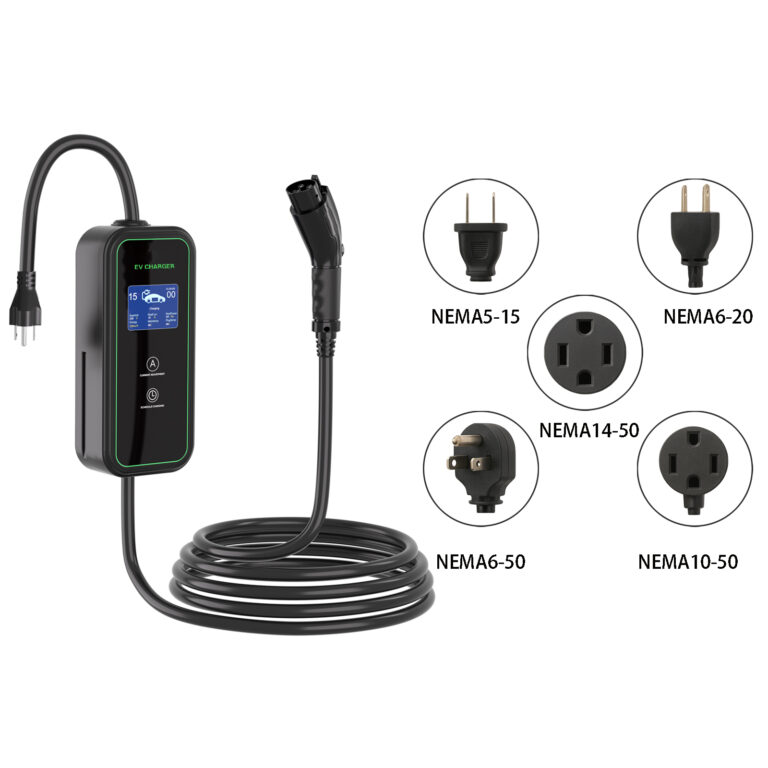

| Model 型号 |
EV15A01US | EV16A01US | EV32A01US | EV40A01US | |
| Adjustable Current 可选电流 |
15A(Max) (6/8/10/13/15A) |
16A(Max)(6/8/10/13/16A) | 32A(Max)(6/8/10/13/16/20/24/32A) | 40A (Max)(6/8/10/13/16/20/24/32/40A) | |
| Ratedvollage/Frequency 额定电压／频率 | 110V/60Hz | 240V/60Hz | 240V/60Hz | 240V/60Hz | |
| Rated Power 额定功率 |
1.65 KW | 3.84 KW | 7KW | 9.6KW | |
| Cable Specification 线材规格 |
3*14AWG+1*18AWG TPE OD:14.2mm |
3*12AWG+1*18AWG TPE OD:14.2 mm |
3*10AWG+1*18AWG TPE OD:16.5 mm |
2*9AWG+1*10AWG+1*18AWG TPE OD:16.5mm |
|
| Standard 执行标准 |
SAE J1772 UL2594 UL62 | ||||
| Product Dimensions 产品尺寸 |
EV plug:220*65*64mm Control Box:218*100*60mm 枪头尺寸：220＊65＊64mm 控制盒尺寸：218 ＊100＊60mm |
||||
| EnvironmentalTemperature 环境温度 |
-35℃ to 55℃ | ||||
| Ground Fault Detection漏电保护 | CCID 20(US) | ||||
| Product Performance 保护功能 |
Over voltage protection. Under vota ge protection.Over load protection.Leakage Protection.Ground protection,Over temperature protection(85°C).Lightning protection,Short circult protection.flame retardant. Surge protection 过底压保护、过载保护、漏电保护、接地保护、超温保护（85C）、防雷击保护、短路保护、阻燃、浪澜保护 |
||||
